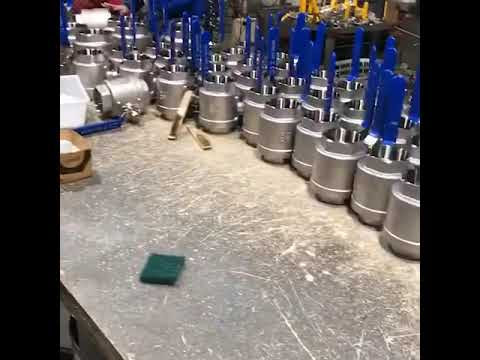

3PC Peek Seat Ball Valve,800LB,F316 Body,316 Trim,3 Inch,SW End
Model:Q11F-800LB-3″
The working principle of 3PC Peek Seat Ball Valve is to rotate the valve stem to make the valve unblocked or occluded. It can be full-bore ball valve, 90°C angle, ball valve switch is light, small in size, can be made into large diameter, reliable in sealing, simple in structure, convenient in maintenance, sealing surface and spherical surface are often closed, not easily eroded by medium, in various industries. Get a wide range of applications. Features: 3-pcs body structure full flow rate from 1/2″ to 2″ pressure 800lb (2000psi) Threaded end can be made according to: BSPT, NPT, DIN2999 socket welding port: ANSI 16.11 fireproof structure design can be anti-static.
STV Valve Technology Group Co., Ltd is a professional leader China 3PC Peek Seat Ball Valve ,800lb forged steel A105N ball valve,3pc forged steel small size ball valve,3pc NPT thread end 800lb ball valve,3 pc high pressure ball valve,3pc small size forged steel ball valve manufacturer with high quality and competitive price.Welcome to contact us!
Please contact our sales@stvvalve.com for other materials and details.
Date Sheet:3PC Peek Seat Ball Valve,800LB,F316 Body,316 Trim,3 Inch,SW End
Description
Size:1/2″-2″
Norminal Pressure:800-2500LB
FP. Full port design / RP. Regular Port / Reduced Port
3 piece / Split body, floating ball
Blow out proof stem
NPT,BSPP,Socket Weld,Butt-Weld, raised face
CAPI / ISO5211 Mounting pad
Level or worm gear
Specifications
Design & Manufacture Std.: API 608,API 607,API 6D,BS 5351
Face to Face Std.: API B16.10,API 6D,DIN 3202
End Connection Std.: NPT, BSP, BSPT, DIN259/2999
Test Standard: ISO5208,API 6D,BS 6755 ,API598
Body Material:A105, F304, F316
Seat: RPTFE,PPL,Nylon,PEEK
Working Temperature:-40-180℃
Suitable:Water, Oil, Gas
| Product Name | 3PC Peek Seat Ball Valve,800LB,F316 Body,316 Trim,3 Inch,SW End |
| 1. Material | F316 |
| 2. Size | 3” |
| 4. Port | Full Port |
| 5. Working Pressure | 800lb |
| 6. Connection Ends | SW |
| 7. Working Temp. | -29~180ºC, |
| 8. Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
| 9. Operated | Handwheel |
| 10. Inspection & Testing | According to API598 |
| Shipment | |
| Delivery Time | 30 Days |
| Package | Standard Exporting Plywood Case |
| Shipping Port | Ningbo/Shanghai, China |
| Shipping Terms | Exw, FOB, CFR, CIF, etc. |
| Payment Terms | T/T, Western Union, PayPal, etc. |
| 30% prepayment, 70% balance paid before shipping | |
| Country of Origin | Wenzhou city, China |
| Production Capacity | 6000 ton/year |
| MOQ | 1 PCS/size |
