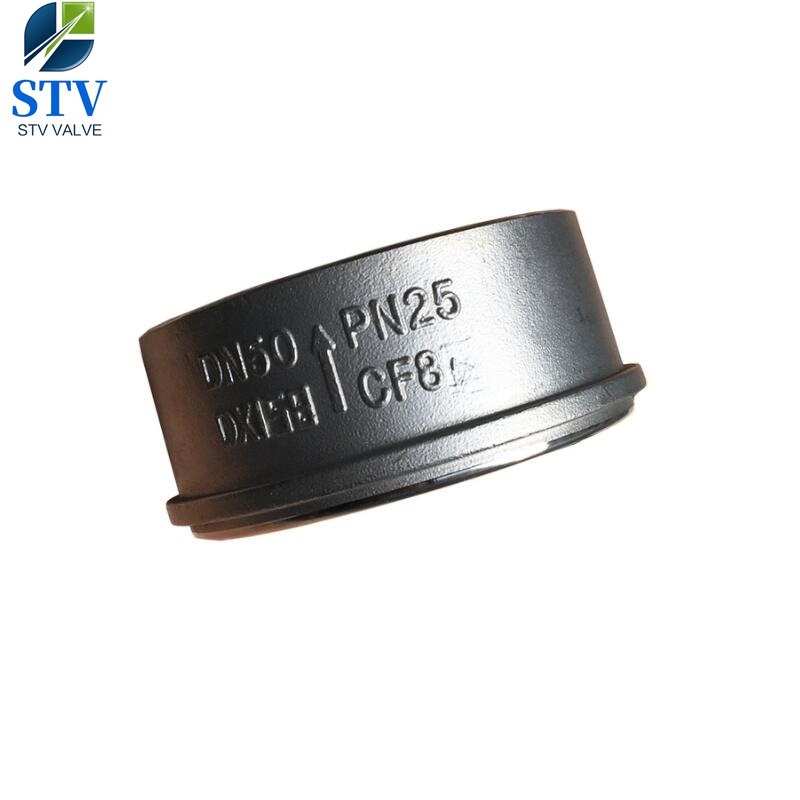

Stainless Steel Spring Disc Check Valve

-

Stainless Steel Spring Disc Check Valve


Model:H71H-150LB-1″
Our Stainless Steel Spring Disc Check Valve Wafer Pattern offers excellent sealing capabilities for both high and low pressures; general purpose, industrial and HVAC applications include water, heating, air-conditioning plants and compressed air systems. An economical, space saving spring loaded valve with Stainless Steel body and metal seal.
Installed either vertically (upwards only) or horizontally.
TECHNICAL FEATURES:
Wafer check valve (single disc)
Body valve, disc and spring:
stainless steel Aisi 316
Assembly between flanges:
DIN PN 10/40 and ANSI 150 lbs
Nominal working pressure: 40 bar (25 bar for
DN125, 150 and 200)
Opening pressure:
Min. 0,025 bar Max. 0,045 bar
Temperature range: 0°C to 200°C.
Installation: horizontal, vertical or inclined flow
Date Sheet:
