What is a Double Offset Butterfly Valve and How Does It Work
A double offset butterfly valve has two special offsets in its design. The shaft is behind and not on the centerline of the disc. This lets the disc move in a cam-like way. The movement stops the seal from being pressed until the disc shuts. This helps lower friction and wear. Double offset butterfly valves make a tight and strong seal. They last longer than regular butterfly valves. Many industries use this valve because it works well and lasts a long time. It can also handle many types of fluids.
Key Takeaways
Double offset butterfly valves have two unique offsets. These offsets help lower friction and wear. This makes them last longer than normal valves. The camming action moves the disc away from the seat fast. This means less force is needed to open or close the valve. It also helps the valve seal tightly. These valves work well with high pressure and heat. This makes them good for hard jobs in places like oil, gas, water treatment, and chemical plants. Double offset valves do not need much maintenance. They also seal well, which saves time and money over many years. Picking the right valve means matching size, materials, and sealing type to the job. This helps keep things safe and makes sure the valve works well.

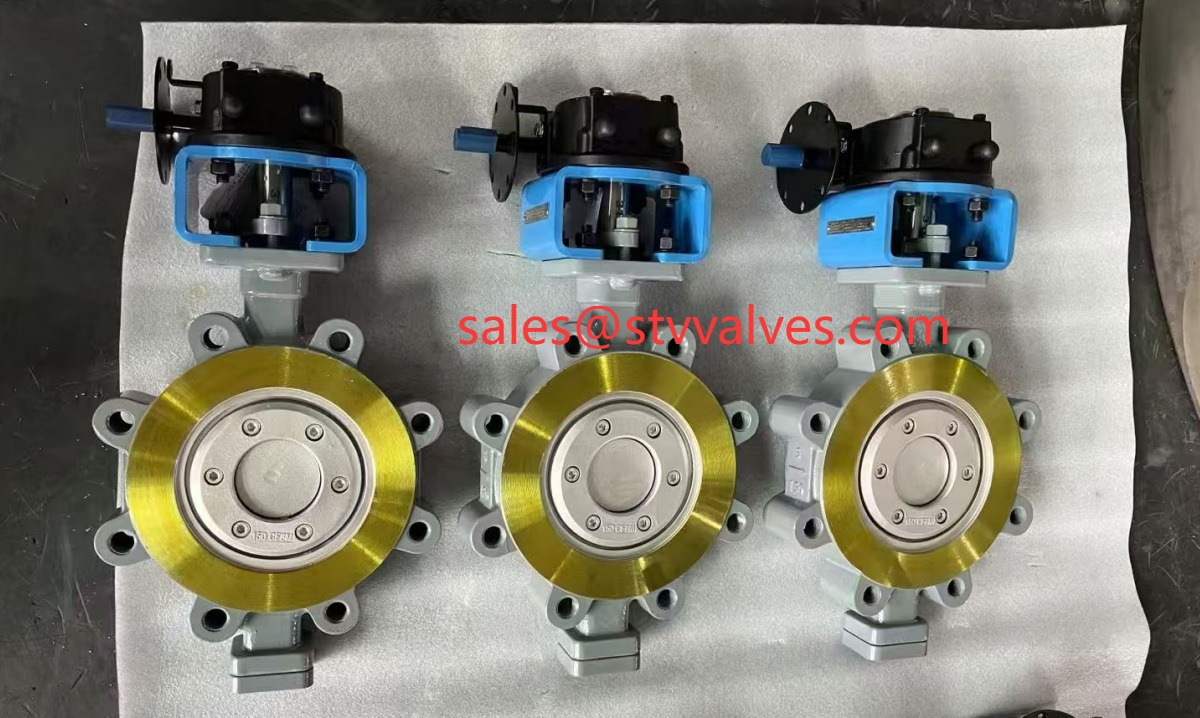

Double Offset Butterfly Valve Design
Double Offset Structure
A double offset butterfly valve has a special design with two offsets. The first offset moves the stem away from the disc’s centerline. The second offset moves the stem away from the valve body’s centerline. This changes how the disc and stem sit inside the valve. The disc does not stay in the middle. It sits a bit to the side. The stem also sits away from the valve body’s centerline.
This double offset structure makes it different from single offset and zero offset designs. In a single offset butterfly valve, only the stem moves away from the disc’s centerline. The double offset design does more. It lets the disc move away from the seat quickly when the valve opens. This quick movement helps stop scraping and wear on the seat. The valve can handle higher pressures and temperatures. It works well with metal seats and in tough places.
Note: The double offset structure helps the butterfly valve last longer and work better in hard jobs.
Camming Action and Sealing
The double offset butterfly valve makes a camming action when it works. When the valve opens, the disc lifts away from the seat in a smooth way. This happens because of the two offsets in the design. The camming action means the disc only touches the seat at the start and end of turning. Most of the time, the disc does not rub the seat. This lowers friction and wear.
The camming action also means you need less force to use the valve. People can open and close the butterfly valve with less effort. The seat and disc last longer because they do not scrape much. The valve makes a tight seal when closed. The disc presses against the seat only at the end of closing. This stops leaks and keeps the seal tight.
The conic sealing profile in the double offset butterfly valve is important too. The disc and seat meet at a small angle, not flat. This shape helps the disc slide into place with less friction. The contact area stays small, so the valve can seal tightly without much force. The conic profile lets the butterfly valve handle higher pressures and temperatures. It also helps the valve work well with many fluids, even those that are rough or can cause damage.
The double offset butterfly valve design:
Cuts down friction and seat wear.
Needs less force to work.
Makes the seat and disc last longer.
Gives tight sealing for safe shutoff.
Works in high-pressure and high-temperature places.
A double offset butterfly valve is known for tight sealing, long life, and handling tough jobs. The special structure and camming action make it a top pick for many industries that need strong and safe shutoff.
How Double Offset Butterfly Valves Work
Opening and Closing Mechanism
A double offset butterfly valve opens and closes in a special way. The stem is not in the middle of the disc or the valve body. This design lets the disc move in a cam-like path. When you turn the handle or actuator, the disc lifts off the seat right away. The disc does not drag along the seat as it opens. It moves out fast and smooth.
This camming action is important. In a regular butterfly valve, the disc touches the seat most of the time. That causes more friction and wears out the parts faster. In a double offset butterfly valve, the disc only touches the seat at the start and end. Most of the time, the disc does not rub the seat.
Tip: The camming action helps the valve last longer and keeps the seal tight.
The sealing method is called positional sealing. The disc presses on the seat only when fully closed. This squeeze makes a tight seal and stops leaks. The valve must close in the right spot to work well. This design is good for jobs where the valve opens and closes a lot and handles many fluids.
Reduced Seat Wear and Torque
The double offset design helps lower seat wear and the force needed to use the valve. The disc moves away from the seat quickly, so there is less friction. The seat and disc do not scrape much during opening and closing. This means the seat lasts longer and does not need to be changed often.
The table below shows how double offset butterfly valves compare to other types:
Valve Type | Operating Torque Characteristics |
|---|---|
Zero Offset | Full friction during the whole cycle because the disc pushes on the soft seal, so it needs the most force. |
Double Offset | Two offsets make a cam action that lifts the seat out of the seal; friction only at the first 10° opening and last 10° closing, so it needs less force than zero offset valves. |
Triple Offset | Three offsets including sealing shape; almost no friction except at the very end, so it needs the least force of all three types. |
A double offset butterfly valve needs less force than a zero offset valve. The cam action means friction only happens at the start and end. This makes it easier to open and close, even by hand. Smaller actuators can be used, which saves space and money.
The butterfly valve works well with soft seat materials. These seats can handle medium temperatures and pressures. The valve gives good sealing, lasts a long time, and is easy to use. Many industries pick the double offset butterfly valve for these reasons.
Note: Less friction means less wear and lower force, so the valve works well for a long time.
If you want to know how double offset butterfly valves work, look at the camming action and how the disc moves away from the seat. This design keeps the valve strong, simple to use, and reliable for many jobs.
Comparison with Other Types
Zero Offset vs. Double Offset
Zero offset butterfly valves have a simple design. The stem and disc sit in the middle. This type works well for basic liquids and gases. It can handle heat up to 400°F. It also works with pressure up to 250 PSI. The sealing is not very strong. So, it fits jobs with lower pressure and heat. The seat covers the valve body. This keeps the media from touching the body.
Double offset butterfly valves use two offsets. These make a cam action that lowers friction and wear. The valve can handle more pressure and heat. Adjustable packing on the stem helps stop leaks and lower emissions. Many industries use this valve for tough jobs. These include oil and gas, power plants, and chemical factories. The sealing is much stronger and lasts longer than zero offset butterfly valves.
Key differences in sealing effectiveness:
Zero offset butterfly valves have a concentric design. They work best for low-pressure jobs.
Double offset butterfly valves use a cam action. This gives better sealing and makes them last longer.
Double offset valves fit high-pressure and high-temperature needs.
Double Offset vs. Triple Offset
Double offset butterfly valves use soft seats. These seats seal by changing shape a little. Some friction and wear happen when the valve works. So, you need to do maintenance. The seat lasts a medium amount of time. Soft materials wear out after a while. The valve needs more force to work because of friction.
Triple offset butterfly valves add a third offset. This makes a cone-shaped sealing surface and a true metal-to-metal seal. The disc does not rub the seat. So, friction and wear are very low. The valve has no spaces for dirt to collect. This means less maintenance. The seat lasts longer. The valve needs less force to work. Automation is easier, and you do not need to service it often.
Feature | Double Offset Butterfly Valve | Triple Offset Butterfly Valve |
|---|---|---|
Seal Type and Friction | Soft seat, some friction and wear | Metal-to-metal seal, minimal friction and wear |
Maintenance Implications | Needs maintenance due to seat wear | Reduced maintenance, no debris-trapping cavities |
Seat Life | Moderate | Longer |
Operating Torque | Higher | Lower, easier automation |
Triple offset butterfly valves last longer and need less maintenance than double offset butterfly valves. The metal-to-metal seal and no rubbing make them good for hard jobs.

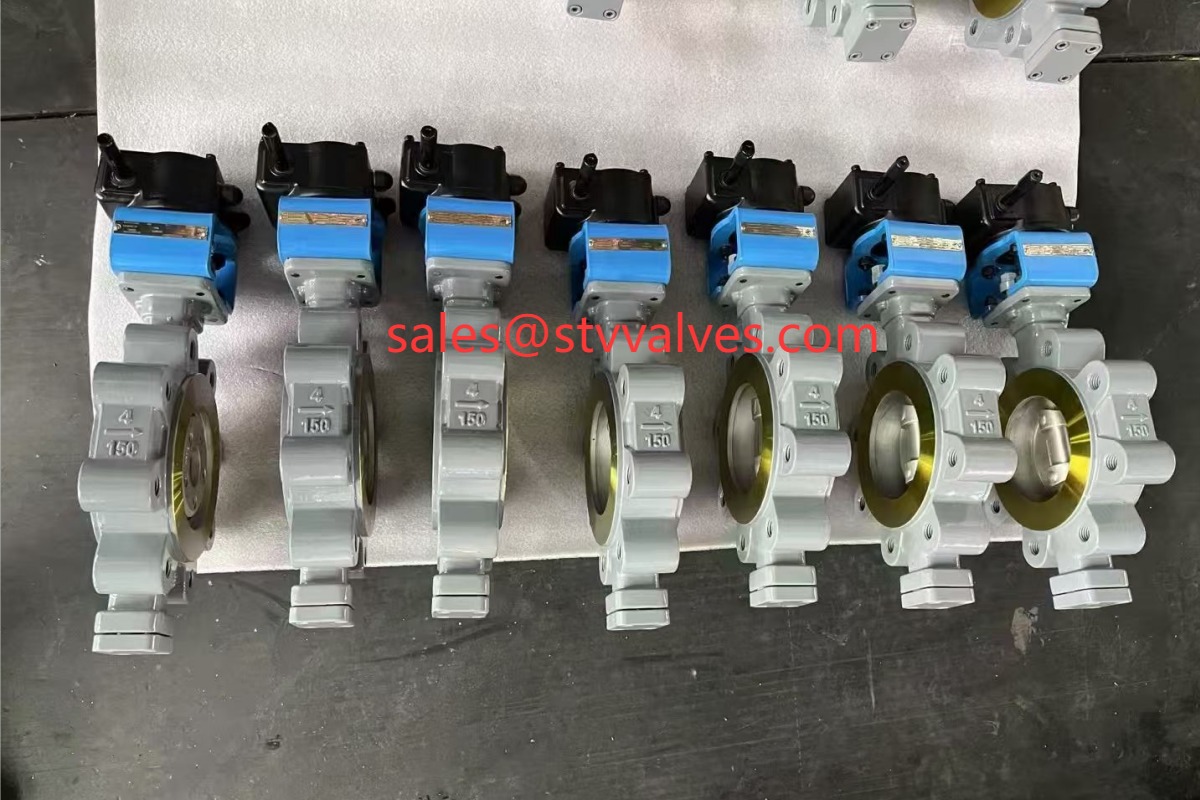

Features and Advantages
High Performance and Sealing
Double offset butterfly valves work well in tough jobs. Their special design lets the disc move away from the seat fast. This lowers friction and wear. The valve closes tightly every time. Many industries use these valves for a bubble tight seal. They work even when pressure is high. The disc only touches the seat at the end of closing. This keeps the seal tight and strong. These valves help stop leaks. Operators trust them for safe use and tight sealing.
Double offset butterfly valves are picked for important systems because they shut off tightly and seal well.
Pressure and Temperature Range
Double offset butterfly valves can handle many pressures and temperatures. The table below shows common ratings for these valves:
Valve Model | Pressure Rating (ANSI Class) | Approximate Pressure (psi) | Size Range (inches) | Temperature Range (°F) |
|---|---|---|---|---|
High Performance Double Offset Valve | ANSI 150 / ANSI 300 | 2" to 48" | -21℉ to 932℉ | |
Bray 4-Cx Double Offset Valve | - | - | - |
Some double offset butterfly valves work in very cold or hot places. They can handle temperatures from -29°C up to 900°F. This depends on the seat and body materials. The wide range lets the valve work in many places. It fits cold water and hot, rough jobs. The valve keeps a tight seal in all these conditions. This is a big advantage.
Durability and Maintenance
Double offset butterfly valves last a long time and need little care. The design lowers friction, so the seat and disc wear less. Many valves use stainless steel or special alloys. These metals do not rust in harsh places. The valve works well for water treatment, oil and gas, and power plants.
The valve shuts off tightly and does not wear much.
The bubble tight seal stops leaks, even after years.
Maintenance is easy and not needed often.
Most double offset butterfly valves need care only once a year. Some last up to 30 years if cared for well. The simple design means fewer parts to change and lower costs. Triple offset valves may last longer in very hard jobs. But double offset butterfly valves are still strong and easy to care for in most industries.
Applications
Industrial Uses
Double offset butterfly valves are used in many industries. They seal tightly and work well. Oil and gas plants use these valves for controlling hydrocarbons. These fluids can be under high pressure and heat. Water treatment plants use them to control flow. They also help stop contamination in water systems. Chemical plants like these valves because they resist corrosion. They also stop leaks when handling strong chemicals. HVAC systems use double offset butterfly valves. They help control air flow and keep the temperature steady.
Oil and Gas: Controls hydrocarbons under high pressure and heat.
Water Treatment: Keeps flow steady and stops contamination.
Chemical Processing: Handles strong chemicals and stops leaks.
HVAC Systems: Controls air flow and temperature.
Chemical and power plants use these valves for tough fluids and gases. The valves keep a tight seal, even in hard jobs. This helps stop leaks and keeps things safe. The valves respond quickly and are built strong. They help control steam and cooling water in power plants. The double offset shape lowers friction and wear. This makes the valves last longer and need less fixing. Operators can pick different materials for the valves. Stainless steel and special alloys work for rough or corrosive fluids. These features make double offset butterfly valves a good choice for many jobs.
Double offset butterfly valves help water plants meet green goals. Their design lowers friction and wear. This means less fixing and less energy use. The tight seal stops leaks. This helps keep water clean and cuts down on waste.
Selection Criteria
Picking the right double offset butterfly valve is important. You need to think about a few things. Industry rules say to follow these steps:
Find out what the job needs, like flow rate, pressure, temperature, and type of fluid.
Make sure the valve size and pressure rating fit the system.
Pick materials that do not rust and can handle the right heat and pressure. Make sure they are safe for the job.
Choose the best sealing type for how the valve will be used.
Make sure the valve meets safety rules like OSHA, ISO, API, or ANSI.
Decide if you want to use the valve by hand, with air, or with electronics. Think about how often you will use it and if you need it to work automatically.
Follow the maker’s rules for putting in and taking care of the valve.
Step | Selection Criteria |
|---|---|
1 | Find flow rate, pressure, temperature, and fluid type |
2 | Match size and pressure rating to the system |
3 | Pick strong materials that last |
4 | Choose the right sealing type |
5 | Check safety rules |
6 | Pick how you want to use the valve |
7 | Follow install and care instructions |
Flow rate is very important when picking a valve size. The valve must let enough fluid through without causing problems. The double offset butterfly valve design helps control flow well. It also keeps pressure drops low. This makes it a good fit for many industrial systems.
Double offset butterfly valves are special because of their smart design. They seal well and are simple to take care of. The table below shows their top benefits:
Advantage | Benefit |
|---|---|
Enhanced sealing | Stops leaks and keeps things safe |
Lower torque requirements | Makes it easy to use and lowers damage |
Versatile material options | Works in tough places |
Compact, lightweight design | Makes putting it in place simple |
When picking a valve, people should look at pressure, temperature, and what fluid is used. Checking the valve often and picking the right materials helps it last a long time.
FAQ
What makes a double offset butterfly valve different from a regular butterfly valve?
A double offset butterfly valve has two special offsets in its design. These offsets let the disc move away from the seat fast. This helps lower friction and wear. Because of this, the valve lasts longer than a regular butterfly valve.
Can a double offset butterfly valve handle high temperatures?
Yes, double offset butterfly valves can work in hot places. Many are made with strong materials like stainless steel. Some valves can handle heat up to 900°F. The seat and body materials decide how much heat the valve can take.
Where do people use double offset butterfly valves?
Industries use double offset butterfly valves in many places. Oil and gas plants use them to control flow. Water treatment plants use them to stop leaks. Chemical plants and HVAC systems also use these valves. They work with many fluids and help keep systems safe.
How often does a double offset butterfly valve need maintenance?
Most double offset butterfly valves need to be checked once a year. The design helps lower friction and wear. This means the seat and disc last longer. Regular checks help the valve work well for a long time.
What are the main benefits of using a double offset butterfly valve?
Double offset butterfly valves seal tightly and need less force to use.
They last a long time and are easy to use for hard jobs.
